Second Law of Thermodynamics

If there is a first law of thermodynamics, that means there is also a second law!
In this lecture, we will learn about this second law!

Reversible change

When there are two states, A and B, and the phenomena from state A to state B and from state B to state A both occur spontaneously, this phenomenon is called a reversible change.

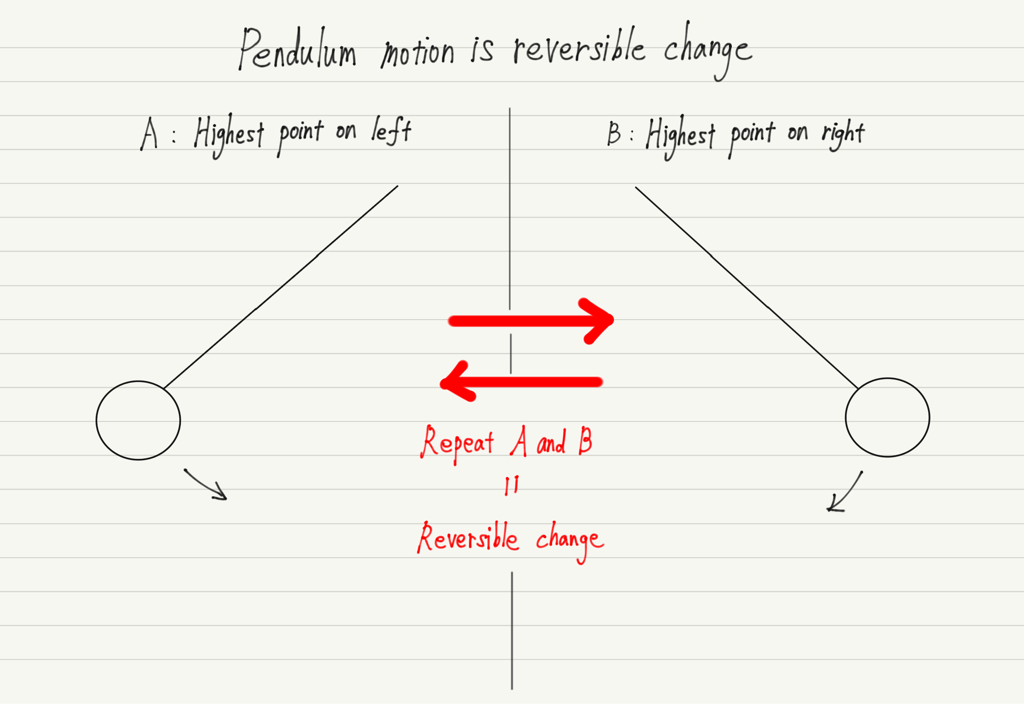

A concrete example of reversible change is the motion of a pendulum (ignoring air resistance).

State A is when the weight of the pendulum is at its highest point on the left, and state B is when it is at its highest point on the right.

Since the pendulum makes a reciprocating motion, the motion from A to B and from B to A both occur spontaneously.

Irreversible change

What does the motion of a pendulum have to do with heat?
Actually, it has little to do with it.
What it has to do with heat is the non-reversible change!

When one of the phenomena from state A to state B and the other from state B to state A occurs spontaneously, but the other does not, this phenomenon is called an irreversible change.

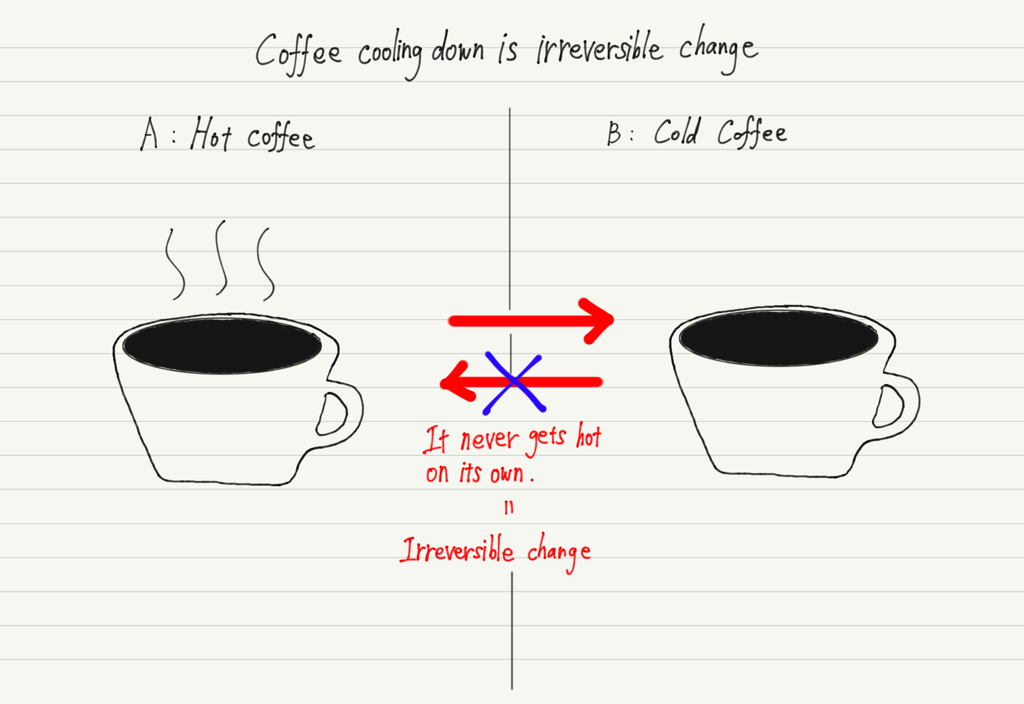

Let’s take coffee as an example of irreversible change. Let A be the state in which the coffee is hot and B be the state in which the coffee is cold, then A to B occurs spontaneously.

For example, if you leave a hot cup of coffee in a room, it will cool down on its own (thermal equilibrium).
However, the opposite, B to A, does not happen spontaneously!

Direction of heat transfer

The key to irreversible change is the direction of heat transfer.
Heat can only move from a higher temperature to a lower temperature.
It is a one-way street.

When ice is added to water, heat is transferred from the water to the ice, so the temperature of the water decreases and the temperature of the ice increases.
But the reverse does not happen!

You have never experienced that the heat from the ice is transferred to the water, making the water warmer than it was before the ice was added, have you?

Thus, when there are warm and cold objects, the warmer object becomes colder and the colder object becomes warmer, eventually reaching a state of thermal equilibrium.
Warmer does not get warmer and colder does not get colder.
Although it seems obvious from experience, this phenomenon cannot be explained by the laws of physics we have learned so far!

Therefore, let us adopt the fact that “Heat moves from a hot object to a cold object. The opposite does not occur spontaneously.”
Let us adopt this fact as a new law and call it the second law of thermodynamics.

Now, if there is no air resistance, the pendulum is reversible, but if there is air resistance, the pendulum will eventually stop because part of the mechanical energy is turned into frictional heat due to friction with the air.

Once the pendulum stops, it absorbs heat energy from the air and does not start moving again.
In other words, in the presence of air resistance, the motion of the pendulum is also an irreversible change.

Thus, heat-related phenomena are always irreversible changes according to the “one-way flow of heat” of the second law of thermodynamics.

Friction and collisions inevitably generate heat, and as a result, the world is full of irreversible changes. We can never go back in time.
The reason why we cannot go back in time may lie in the second law of thermodynamics.

Another expression of the second law

From this second law of thermodynamics, we can draw many interesting conclusions.
For example, for the heat engine studied in the previous lecture, the second law of thermodynamics proves that “the thermal efficiency of a heat engine is never equal to 1.”

Conversely, since the thermal efficiency never equal to 1, we can prove that “heat moves from a hot object to a cold object.”
Therefore, we can state that “the second law of thermodynamics is that the thermal efficiency never equal to 1.”

As you can see, there are several different expressions of the second law of thermodynamics.
If you are interested, please look them up.

By the way, have you ever heard of a perpetual engine?
It is a machine that, once started, keeps moving forever, and many people throughout history have dreamed of this and lost.

Since a perpetual engine is a machine with no energy loss (= thermal efficiency is 1), the second law of thermodynamics indicates that a perpetual engine can never be built.

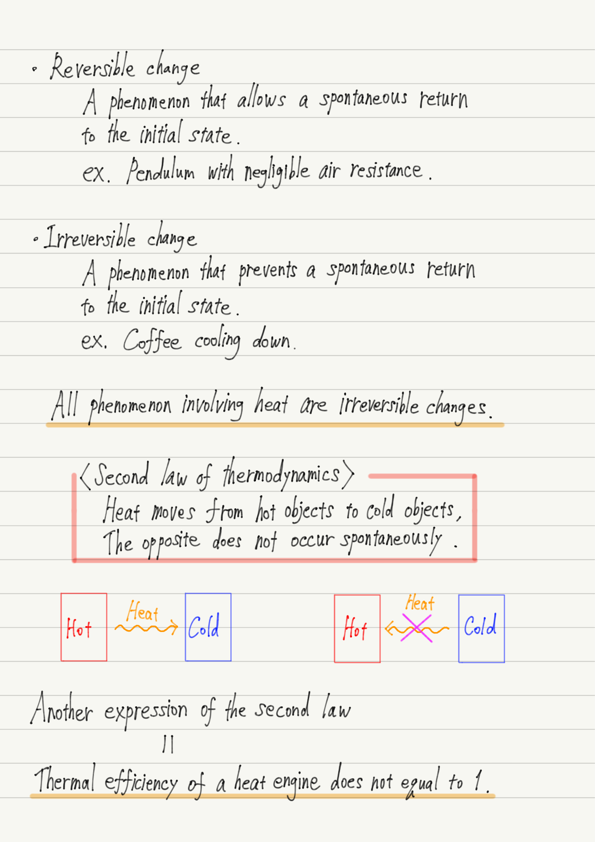

Summary of this lecture

Next Time

The next section is Advanced Physics.
Please complete the contents of Basic Physics before proceeding.
